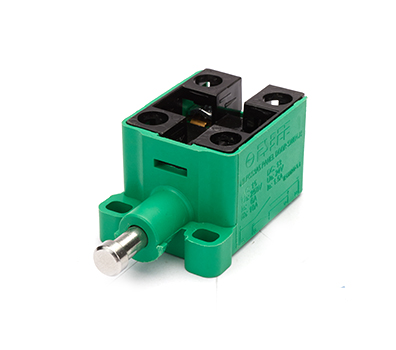

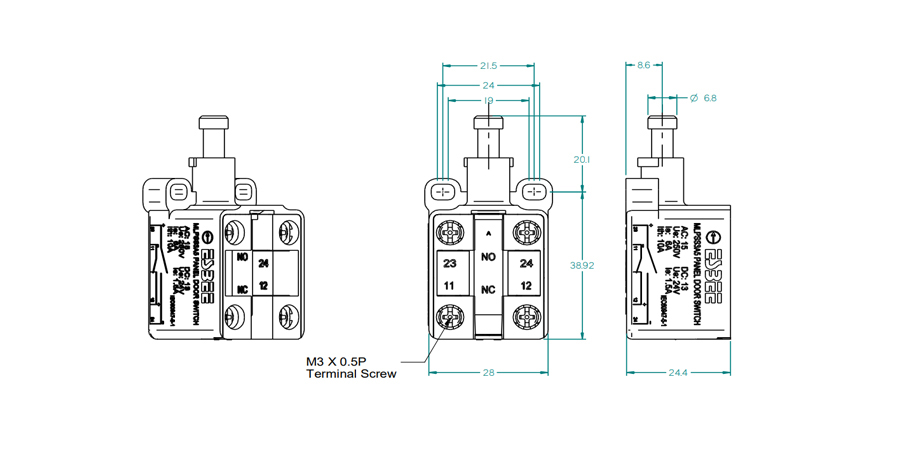

Rooplaxmi Electricals - DOOR LIMIT SWITCHES

FEATURES

Rounded metal plunger
1NO+1NC contact. NC contact with positive opening
Rating 6A, 240v Ac
IP 20 protection
Mechanical & Electrical life 0.1 million cycles
Fire retardant material used for mechanical & electrical safety
Flexibility of lug wiring like barrel, U type
Termination up to 1.5 sq. mm wire
Operating temperature -25 to 60 degree centigrade & storage temperature -30 to 70 degree centigrade

Test Parameters	Specification
Operating ambient temp. Range	-10~+65°C
Insulation Resistance	100MΩ above(at 500VDC)
Withstand Voltage /HV	Current-carrying and non-current-carrying metal parts, Between terminal and earthing: 1500VAC, 50/60HZ
Contact Resistance	Should be less than 50 mOhm at 6 Amp Initially.
Life	Mechanical : 100000 cycles
Life	Electrical: 100000 cycles at rated 240VAC 6A Resistive Load.
Humidity	85%RH(+5~+35°C)
IP Rating	1.Open-type switch housing provides IP20 protection.
Vibration testing/ Mechanical Shock	Vibration under testing- IEC 60068-2-6 Mechanical shock under testing- IEC 60068-2-6
RoHS	comply
Rated Current	6 Amp ; 1.5 Amp
Operating Temperature	-25°C to 60°C
Storage Temperature	-30°C to 70°C
Terminal Torque	0.8 N-m minimum
AC:15	Ue: 250V Ie: 6A Ith: 10A ( IEC 60947-5-1)
DC:13	Ue:24V Ie:1.5A ( IEC 60947-5-1)
MV Drop	should be less than 50mV at 6 Amp Initially.
Lug Feasibility	Barrel type,'U' type,Bare Cable 0.5mm2 to 2.0 sq. mm Cable.
Actuating Rod & Head	Round Head
CE as per IEC 60947-5-1	Under testing with Positive Opening
