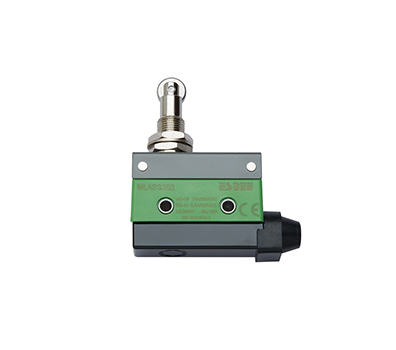

MLASS3B2

Characteristics
Operation speed	0.5mm-50cm/sec
Operating frequency	Mechanical: 120 operations/minute Electrical: 30 operations/minute
Contact resistance	15mΩ max. (initial value)
Insulation resistance	100mΩ above (at 500VDC)
Dielectric strength	1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
	1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current- carrying metal parts
	1500VAC, 50/60 Hz for 1 minute between each terminal and ground
Vibration	Action:10 to 55Hz, 1.5mm pairs swing
Ambient temperature	10~+80°C (With no icing)
Humidity	< 95% RH
Life	Mechanical: 1 Million Electrical: 0.5 Million
Warranty	24 Months*
Degree of protection	IP66 (IEC Standard)

Utilization Category for Limit Switches
Kind of Current	Category	Typical Application
Alternative Current	AC-15	Control of Electromagnetic Load > 72 VA
Direct Current	DC-13	Control of Electromagnets

Contact Rating Designation Based on Utilization Catagories
Designation	Utilization Catagory	Conventional Enclosed Thermal Current	Rated Operational Current (A) at Rated Operational Voltage						VA Ratings
Resistance Load			120 V	240 V	380 V	480 V	500 V	600 V	Make	Break
AC-15	10	6	3	-	-	-	-	-	7200	720
Direct Current			125V	250 V		400 V	500 V	600 V	Make	Break
P600	DC-13	5	1.1	0.55		0.31	0.27	0.2	138	138
