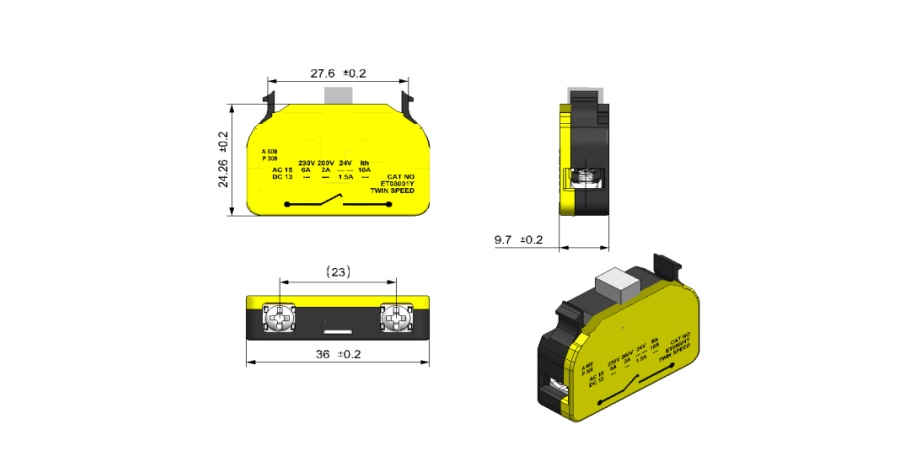

TWIN SPEED CONTACT BLOCK NO

Electrical Specification:

Sr.No	Parameters	Specification
1	Rated Voltage	250 VAC ; 24 V DC
2	Rated Current	6-10 Amp
3	Rated Opertaion Current	AC (50 to 60Hz)		DC
		Ue V	Ie/AC 15 (utilization category)	Ue V	e/DC 13(utilization category)
		250	6	24	1.5
4	Insulation Resistance	100MΩ above(at 500VDC)
5	Withstand Voltage /HV	Current-carrying and non-current-carrying metal parts, Between terminal and earthing : 1500VAC, 50/60HZ
6	Terminal Torque	0.8 Nm (Minimum)
7	Life:	Electrical: 1000000 cycles ( 1 Million) (Push Button & Contacts)*
		Mechanical : 1000000 cycles ( 1 million)*
8	Connection	Screw type terminal

Envorimental Conditions:

1	Ambient Temperature	-10~+65°C
2	Humidity	95% RH (65°C)
3	Operating Temperature	-20°C to 65°C
4	Storage Temperature	-30°C to 70

Operating Force:

SR. NO	TRAVEL (MM)	FORCE (GMS.)	REMARK
1	0.5	1350
2	1	1400	Actuation Change
3	1.5	1400
4	2	1800
5	2.5	2100

Material:

Base / Cover – Tough, Impact resistant & fire retardant Plastic.

High mechanical strength, stiffness, hardness and toughness.

Good fatigue resistance.

High mechanical damping ability.

Good sliding properties.

Excellent wear resistance.

Good electrical insulating properties.

Good resistance to high energy radiation (gamma & x-ray).

Good machinability.


Approvals:

CE, IP20(As per IEC 60529 Standards)

RoHS compliant.
