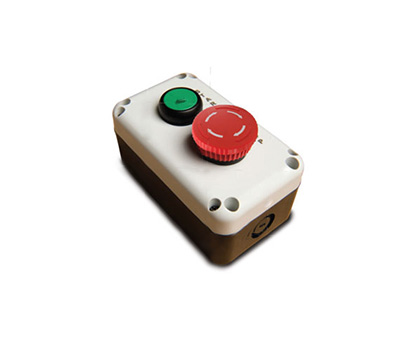

Rooplaxmi Electricals - flush head & E stop

FEATURES

Test Parameters	Specification
Product	Pro Push Button Station
Safety	Fully insulated to hose electrical & electronic equipment w.r.t. protection against electric shock.
Material	Bottom Cover: Tough, Impact resistant & fire retardant ABS. Top Cover: Tough, Impact resistant & fire retardant ABS. Gasket: Nitrile rubber, which is good resistant to Oil & acids. Screws: Half threaded Self tapping Cold Forged Screws with blacodising.
Single	75 x 75 x 56
Two	127 x 75 x 56
Three	160 x 75 x 56
Four	215 x 75 x 70
Five	270 x 75 x 71
Eight	NA
Screw Size for Wall Mounting	M4 mm Insertion of screws directly through base cover.
Temperature Range	Long term exposure to temperatures above 70° C should be avoided. No significant change in impact strength is noticed up to -20° C.
Degree of Protection	IP 65
